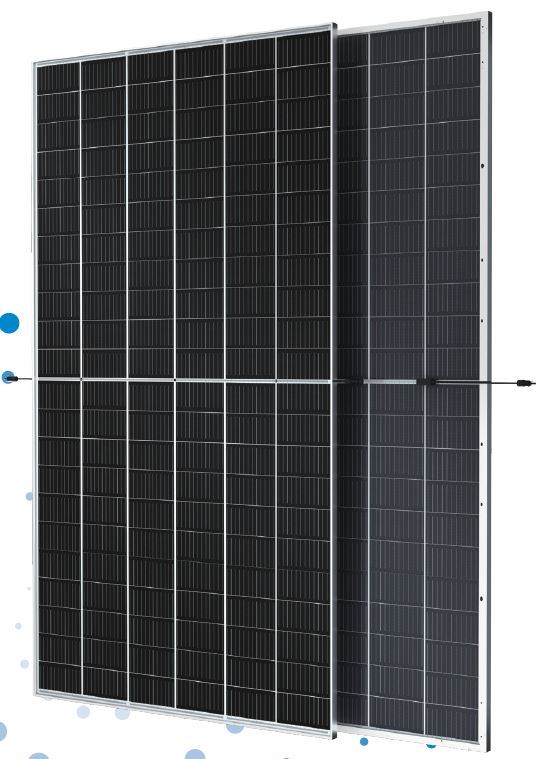

VertexBIFACIAL DUAL GLASS MONOCRYSTALLINE MODULETSM-DEG21C.20 645-665WKey Features: High customer value• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components
High power up to 665W
• Up to 21.4% module efficiency with high density interconnect technology
• Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
High energy yield
• Excellent IAM (Incident Angle Modi er) and low irradiation performance, validated by 3rd party certifications
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coefficient (-0.34%) and operating temperature
• Up to 25% additional power gain from back side depending on albedo
The Trina Solar Vertex series, ranging from 645W to 665W, is engineered with PERC Technology, ensuring module efficiency of up to 21.4%.
Specifications include various models (TSM-DEG21C.20 645W to TSM-DEG21C.20 665W) with detailed power outputs, voltage, and current ratings. The panels feature PERC Mono 210mm x 210mm cells, with a panel dimension of 2384 x 1303 x 33 mm and a weight of 38.3 kg.
| Model |
TSM-DEG21C.20 |
TSM-DEG21C.20 |
TSM-DEG21C.20 |
TSM-DEG21C.20 |
TSM-DEG21C.20 |
| Pmax(Wp) |
645W |
650W |
655W |
660W |
665W |
| Voc(V) |
45.3 |
45.5 |
45.7 |
45.9 |
46.1 |
| Isc(A) |
18.31 |
18.35 |
18.40 |
18.45 |
18.50 |
| Vmp(V) |
37.5 |
37.7 |
37.9 |
38.1 |
38.3 |
| Imp(A) |
17.23 |
17.27 |
17.31 |
1`7.35 |
17.39 |
| Module Power |
20.8% |
20.9% |
21.1% |
21.2% |
21.4% |
| Cell Type |
PERC Mono 210mm x 210mm |
| Cell Qty |
132PCS (6 x 11 + 6 x 11) |
| Panel Dim |
2384 x 1303 x 33 mm |
| Panel Weight |
38.3 kg |
| Package |
Container |
40ft(HQ) |
Box Qty |
18 |
| Panel Qty |
594 |
PCS/ Box |
33 |
System
Certification |
ISO9001: 2015 Quality Management System |
| ISO14001: 2015 Environment Management System |
| ISO14064: 2018 Greenhouse Gases |
| ISO45001: 2018 International Occupational Health and Safety Management System |
Product
Certification |
IEC 61215 / IEC 61730 / IEC61701 / IEC62716 / UL61730 |
| CE |
| Delivery |
10-30 Days |
